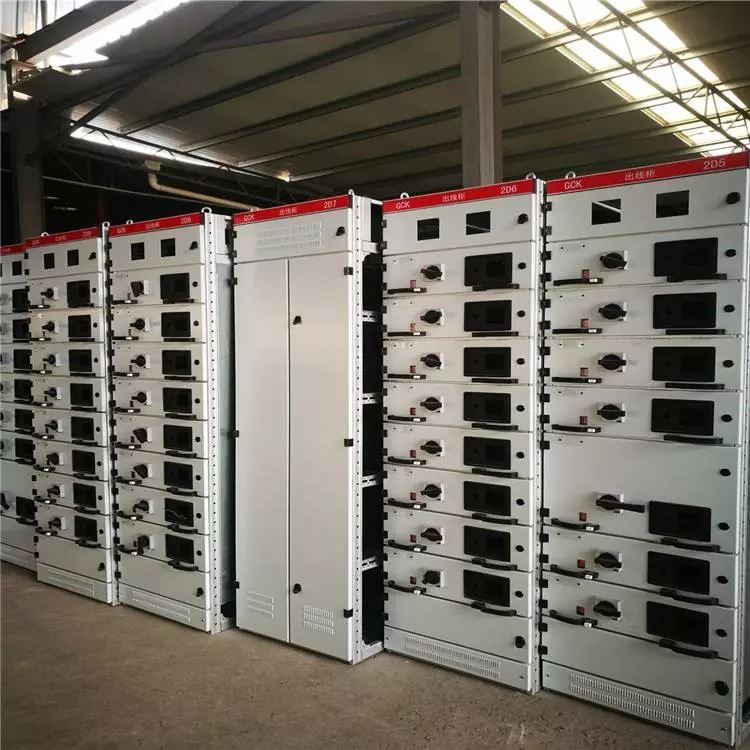

Low Voltage Withdrawable Switchgear Cabinet
GCK low-voltage withdrawable switchgear consists of two parts: the power distribution center cabinet (PC) and the motor control center (MCC). It is suitable for AC 50Hz, the maximum working voltage of 660V and the maximum working current of 3150A power distribution system. Power plants,...
Description
GCK low-voltage withdrawable switchgear consists of two parts: the power distribution center cabinet (PC) and the motor control center (MCC). It is suitable for AC 50Hz, the maximum working voltage of 660V and the maximum working current of 3150A power distribution system. Power plants, substations, industrial and mining enterprises, etc., used for power distribution and control of electric energy conversion, power distribution equipment, motor control equipment and lighting equipment.
This series of products have high breaking capacity, good dynamic and thermal stability, advanced and reasonable structure, practical electrical scheme, perfect series characteristics and versatility, random combination of various scheme units, a cabinet contains many circuits, Less floor space, large area, beautiful appearance, high protection level, safety and reliability, convenient maintenance, etc.
It complies with IEC439, GB7251.1-1997 standard low-voltage switchgear and control equipment components.
| Rated working frequency | Hz | 50 | |
| Rated working voltage | V | 380、660 | |
| Rated insulation voltage | V | 660 | |
| Rated working current | Horizontal bus Vertical bus | A A | 630～3150 600 |
| Rated short-time withstand current | Horizontal bus Vertical bus | A A | 80KA(effective value)/1s 50KA(effective value)/1s |
| Rated peak withstand current | Horizontal bus Vertical bus | A A | 176KA 110 |
| Connector of main circuit | A | 200、400 | |
| Connector of auxiliary circuit | A | 10 | |
| Power frequency withstand voltage for 1min | V | 2500 | |
| Max capacity of control motor | KW | 155 | |
| Protection class | IP40 | ||
| Operating mode | Local, remote, automatic | ||
Company Information:
Our products have been sold to many countries or regions, such as Vietnam, South Korea, Taiwan, the United States, Sri Lanka...
More than 20 kinds of protection devices can help you avoid malfunctions and injuries. The carefully selected materials and design can ensure higher safety and longer service life.
Qualified and experienced team. Make sure everyone is trained and keep learning.
Supervision at all stages from design, production to quality control.
Comply with general standards and various certifications, type test reports. We have CQC, CCC and ISO certificates. The main parts of the system have passed UL, CSA certification and China electrical equipment installation confirmation.
Quick response.
