33kv Switchgear Cabinet
It is suitable for three-phase AC rated voltage 40.5kV, rated frequency 50Hz power system. It is used for receiving and distributing electric energy and controlling, protecting and detecting the circuit. In addition to being widely used in general power systems, it can also be used in places with frequent operations.
Description

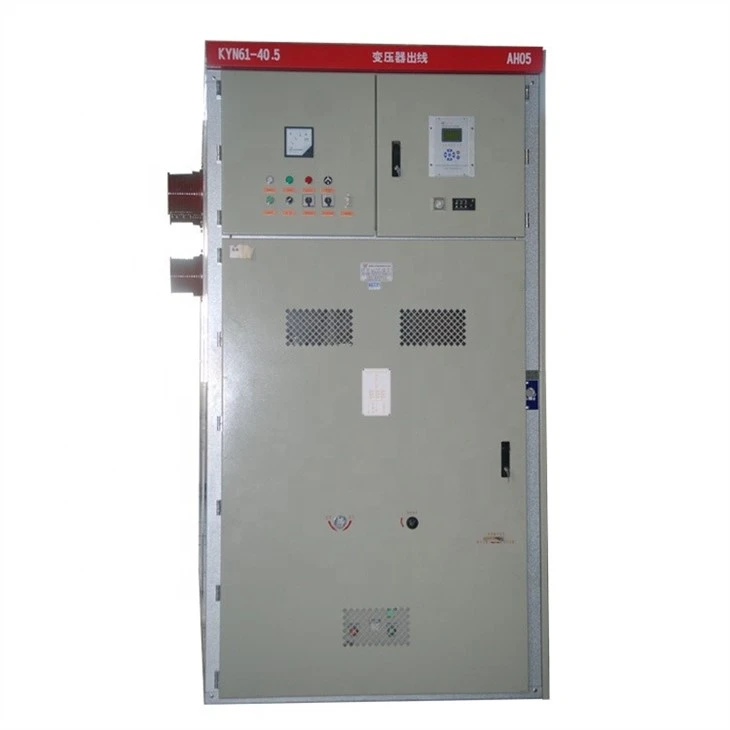

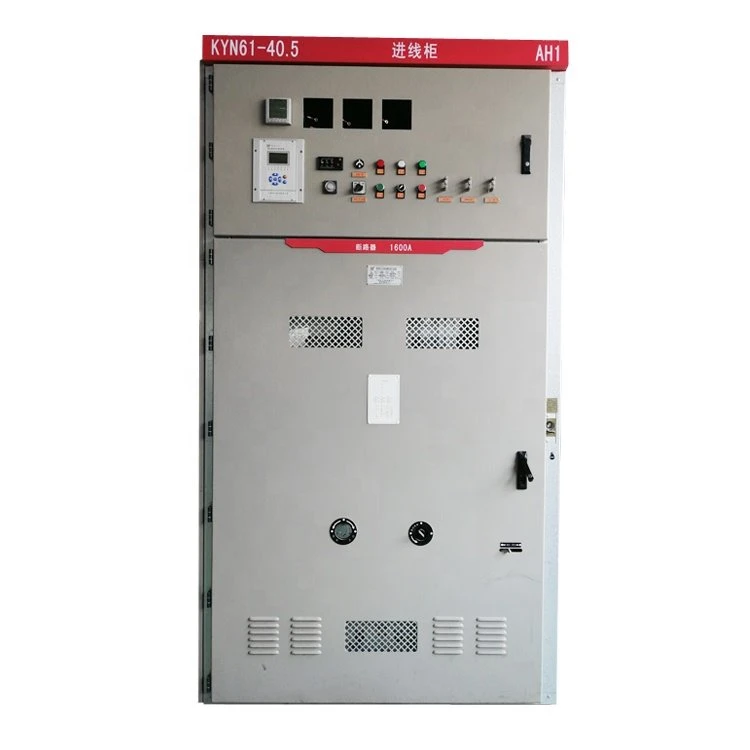

KYN61-40.5 high voltage switchgear cabinet
Its main feature is that the cabinet is equipped with a fully insulated vacuum circuit breaker and a spring operating mechanism. It can also be equipped with ABB's VD4-40.5 and HD4-40.5 cabinets which are assembled with aluminum-zinc plate and cold-rolled steel plate sprayed plastic, which improves the matching accuracy of the handcart and the cabinet. The pushing and pulling out of the handcart is very light and highly interchangeable. Beautiful appearance, complete scheme, safe and reliable use.
Normal use conditions
Ambient air temperature: -15℃~+40℃;
Altitude: 2000m and below;
Humidity conditions: daily average not more than 95%, daily average water vapor pressure not more than 2.2kPa
The monthly average is no more than 90%, and the monthly average water vapor pressure is no more than 1.8kPa.
There are no obvious polluted places such as corrosive or flammable gas.
Note: The user can negotiate with our company when the above-mentioned normal use conditions are exceeded.

Advantage
1. Simple structure, reasonable layout, safe use and easy maintenance.
2. The amplitude and time of the short-circuit current can be limited.
3. It can reliably and effectively protect the transformer.
4. It has the function of isolating switch and can be installed with grounding switch.
5. Computer-aided design improves the standardization of product structure size.
