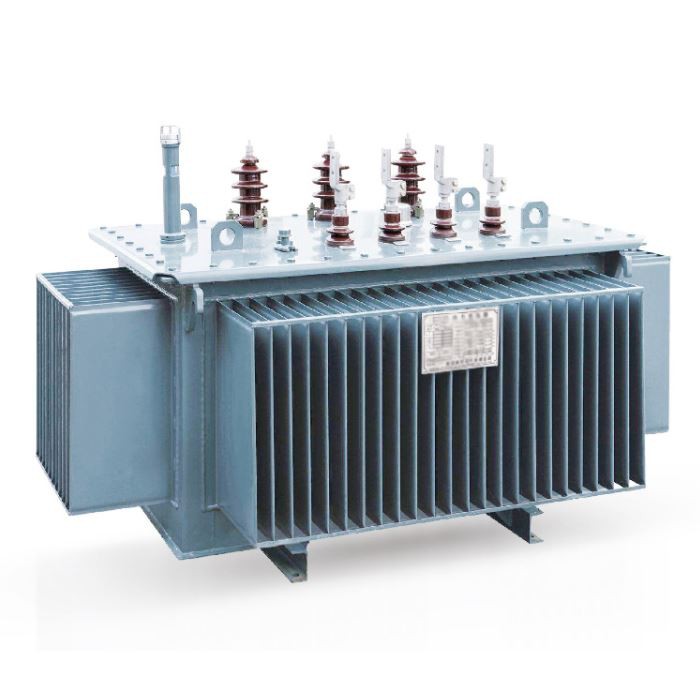

Amorphous Alloy Electrical Transformer

Amorphous alloy transformer is a low-loss and high-efficiency power transformer with iron-based amorphous metal as the iron core. The iron loss (ie no-load loss) of amorphous alloy transformers is 70-80% lower than that traditional transformers which generally use silicon steel as the iron core. It is an ideal low-loss energy-saving transformer at present. Because of low losses amorphous alloy transformers generate less heat .The temperature rise is low and the running performance will be very stable.

1、 What is an oil immersed transformer?

Oil immersed transformer, also known as oil immersed transformer, is a transformer device that uses oil cooling to reduce the temperature of the transformer. Unlike dry transformers, the main body of an oil immersed transformer is installed in a welded steel oil tank filled with insulating oil. When an oil immersed transformer is in operation, the heat from the coil and iron core is first converted into insulating oil and then into cooling medium. According to the capacity, it can be divided into immersed Free cooling transformer and immersed forced air cooling transformer.

2、 The structure and working principle of oil immersed transformers

Oil immersed transformers are structurally similar to transformers It is one of the types of transformers classified according to the insulation form of the iron core. Therefore, it has recognizable features of oil immersed coils, which can reduce the heat map of the equipment inside.

The basic components of the oil immersed type are composed of magnetic cores, windings, and bushings. The magnetic core provides a path for magnetic flux. The winding creates a magnetic field consisting of a conductor coil wound around an iron core and insulated with a cardboard barrier and shielding layer. The thickness of the winding insulation layer increases with increasing voltage. The bushing connects the transformer winding to the substation.

Oil type transformers are used for power distribution or substations. Their core and coils are immersed in oil, which can cool and insulate. Oil circulates through the pipes in the coil and around the coil and iron core components through convection. The oil is cooled externally by the fuel tank at low rated values, and by an air-cooled radiator at high rated values.

3、 Types of oil immersed transformers

There are two main types of oil immersed transformers: single-phase transformer and three-phase transformer.

A. One phase oil immersed transformer

B. Three-phase oil immersed transformer

4、 Purpose of using oil immersed transformers

Oil type transformers can be installed on the ground, base, or pole for outdoor use. They provide efficient performance in various applications, including transmission and distribution networks, renewable energy generation, and small industries.

The oil transformer has a huge capacity, so it will save a lot of electricity, minimize energy loss, save energy, and reduce user costs. Not only that, the oil in the machine can also cool the internal wire cores, thereby improving the durability and electrical performance of transformer equipment.

5、 Precautions for using oil-immersed transformers

1. Oil immersed transformers use oil for operation, so the quality of the oil will significantly affect the lifespan and safety of the transformer.

2. During use, it is necessary to regularly inspect and maintain the transformer system to ensure the normal and safe operation of the machine. Otherwise, there is a high risk of problems and extreme danger.

3. The waste generated by petroleum is prone to polluting the environment and affecting the lives of surrounding people. Therefore, the gradual disposal of waste is also important

Application:

Amorphous Alloy electrical Transformer can be widely used in high-rise buildings, commercial centers, subways, airport, stations, industrial and mining enterprises, drilling platforms, oil production platforms; especially suitable for flammable, explosive and other places with high anti-inflammatory requirements and harsh environments, and can also be used in residential areas , Commercial streets, industrial and mining enterprises and rural power and lighting.

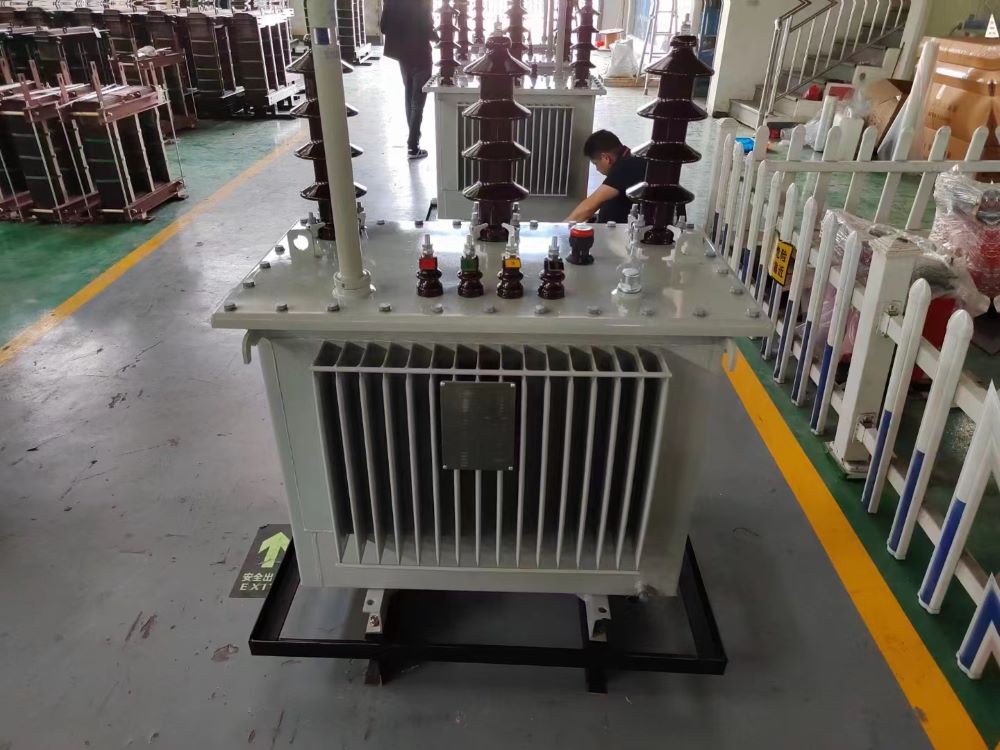

PRODUCT PHOTO

Applicable environment:

Indoor or outdoor where the altitude does not exceed 1000m;

Maximum ambient temperature +40℃;

Maximum daily average temperature +30℃;

The highest annual average temperature is +20℃, and the lowest temperature is -25℃.

Transformers that operate under special conditions of use can be provided according to user requirements.

Traduction pour : Transfo H61 20KV 160kVA B2

H61 Transformer 15(20)kV 160kVA B2

Three-phase MV / LV distribution transformer with MV and LV windings in wound copper power P = 160KVA

- Compliance: NFC 52 100 - 52 112 and 52 113 standard or equivalent in substance

- Natural cooling: ONAN

- MV voltage adjustment: by switch off +/- 5% in five (5) positions

- Type: on post H61

- Nominal power: 160KVA

- Primary rated voltage: 20,000V ± 5%

- Secondary voltage: 410V off-load between phases / 240V between phase and neutral

- Frequency: 50Hz

- Short-circuit voltage: 4%

- No-load loss less than or equal to 300W

- Load loss less than or equal to 2000W

- Coupling: Dyn11 with output neutral

- MV and LV crossings: in porcelain

FACTORY WORKSHOP

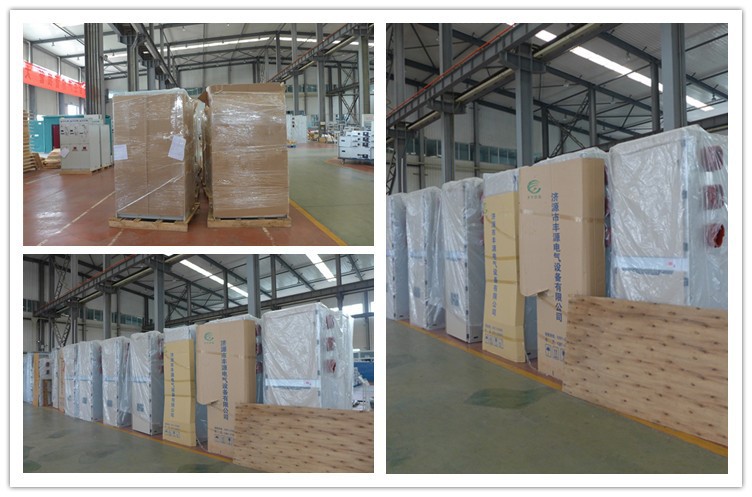

PACKING&DELIVERY

FAQ:

1. Are you a manufacturer or a trader?

Fengyuan Power is a leading professional manufacturer located in Henan, China

2. How about your delivery and after-sales service?

Delivery is based on the order quantity, usually we need 1 month for container orders. 20 containers (20 feet or 40 feet) per month are no problem for us. We can answer user questions and solve their problems 24 hours a day, and provide comprehensive technical support for all our products in a timely manner.

3. What is your product warranty?

First of all, our switchgear and power equipment have CCC, ISO9001...etc. quality certification, and its electrical parts and accessories have CE, Rohs, CB, TUV, Kema... Secondly, we provide 1 year quality guarantee.

4. Do you accept OEM and ODM?

Yes. Our R&D team has the latest technology and can develop and produce products according to customers' drawings and brands

This product is usually customized.

We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.

Please contact our sales personnel to obtain design drawings

Here are our customer examples for your reference

Togo customer

Data Sheet N° 1-A: Transformer H61 20kV/400V of 100kVA

IF NEED MORE DETAILES,PLEASE FEEL FREE YO CONTACT US
