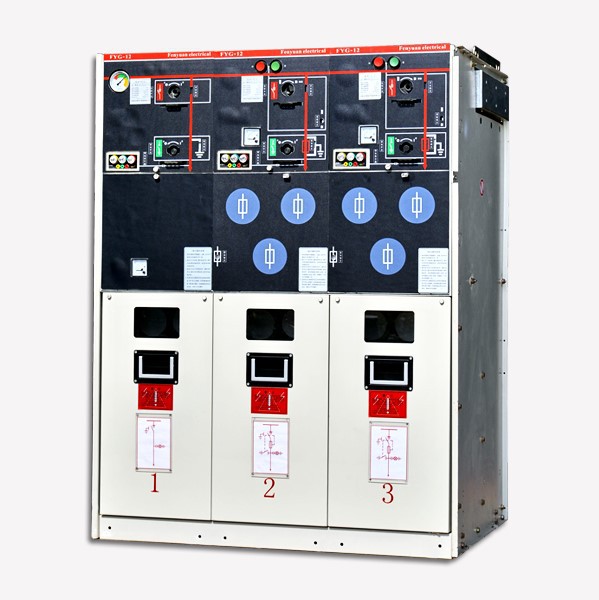

Electric High Voltage Single SF6 gas insulated RMU switchgear

Description

Our inflatable SF6 metal seal full insulation series ring network switch cabinet has passed the type test of the national occlusal electrical testing center. Widely used in 10KV/6K power distribution system, it is the preferred switch product for various users in urban and rural areas.

switch cabinet is modular unit mode, which can be combined according to different purposes. By the combination of fixed units and expandable units, which substation meets the need of compact switchgear flexible use.

Inflatable ring SF6 cabinet is divided into non-expandable standard configuration and expandable standard configuration. Due to the combination of full module and half module and its own scalability, it has extremely special flexibility. SF6 inflatable ring cabinet implemented GB standard. Under the condition of the interior (20 ℃) run the design life of more than 30 years.

Feature:

Use SF6 load switch and load switch-fuse combination as the main switch. Equipped with vacuum load switch and spring operating mechanism, which can be operated manually or electrically. The earthing switch and insulation switch are equipped with manual operation mechanism. Small size and high safety

1. Years of ring main unit switchgear manufacturer

2. Easy to install

3. Less maintenance

4. Safe and upgradeable

Electrical Ring Main Unit (RMU)

FENGYUAN SF6

SF6

Service condition:

Ambient temperature: -15°C~ +40°C;

Relative humidity: daily average ≤95%, daily average water vapor pressure<2.2kPa;

Monthly average ≤90%, monthly average water vapor pressure<1.8kPa;

Altitude: ^ 1000m;

Earthquake intensity: no more than 8 degrees

The ambient air should not be polluted by corrosive or combustible gases or vapors;

No obvious vibration;

Note: Due to continuous product improvement, the dimensions provided in this catalog are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.

Item		Unit	Parameters
Rated voltage		KV	3, 7.2, 12
Rated current		A	630,1250,1600,2500,3150,4000*
Rated short circuit breaking current		KA	25, 31.5, 40
Rated short circuit switching current			63, 80, 100
Rated short-yime withstand current(4s)			25, 31.5, 40
Rated peak withstand current			63, 80, 100
Rated frequency		Hz	50
Rated insulation level	1 min power frequency withstand voltage	KV	42
	Lighting impulse withstand voltage		75
Control circuit voltages	AC	V	110, 220, 380
	DC	V	110, 220
Protection degree		Housing IP4X , cubicle and circuit breaker IP2X when door is open

The difference between AIS and GIS

1.Different structures

GIS is characterized by a combination of phase separation, three-phase common cylinder, and composite structures in its shell structure. The development of GIS casing from phase separation to three-phase common cylinder has further miniaturized GIS. At present, the international community has achieved the simplification of all 300kV three-phase systems and the integration of 550kV busbar three-phase systems.

The layout of AIS equipment is clear, which is conducive to daily maintenance and repair by relevant personnel. The overall structure is simple, the structural form is clear, and the electrical wiring is clear, which is conducive to operation.

2.Different areas

GIS has the advantages of small footprint, small volume, light weight, and all components are sealed without environmental interference. The operating mechanism has no oiling or gasification, and has high operational reliability. GIS adopts whole block transportation, which is easy to install, short in cycle, and low in installation cost; The maintenance workload is small and the time is short. The box type GIS adopts three-phase mechanical linkage, with a low mechanical failure rate.

AIS equipment covers a wide area and has many exposed components, which are easily affected by weather factors and are not conducive to the safe operation of the equipment.

3.Superior breaking performance

The circuit breaker adopts a self-energy arc extinguishing chamber based on the new arc extinguishing principle (a hybrid structure of self-energy thermal expansion and auxiliary compressed air device), fully utilizing the energy of the arc itself. Gas insulated fully enclosed composite electrical appliances, the electrical appliances inside the enclosure mainly include circuit breakers, isolation switches, grounding switches, busbars, lightning arresters, and other primary equipment. Many switch stations in power plants and substations are made of GIS, which occupies a small area and is easy to maintain. It's still different from high-voltage switchgear.

4.Low loss and noise

The induced magnetic field on the GIS casing is very small, so the eddy current loss is very small, reducing the loss of electrical energy. The use of spring mechanism results in low operating noise. Disadvantages: GIS has the disadvantages of high price, inconvenient installation and testing, poor flexibility, and inconvenient maintenance and expansion.

AIS is relatively cheap, easy to install and test, has good flexibility, and is more convenient for maintenance and expansion.

5.purpose

GIS performs better than AIS, but due to differences in cost and management capabilities, AIS will not completely exit for a considerable period of time. Use intelligent monitoring and diagnostic tools to extend maintenance cycles and avoid unnecessary work.
