SF6 Gas Insulated Electrical Control Panelboard

Name: China Customized SF6 Gas Insulated Electrical Control Panelboard Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 191901796

SF6 series high voltage cable branch box is widely used in 33KV ,24KV,11KV node connection of cable system .It is main electrical equipment for the cable to be assembled and separeted from the outlet of the switchgear . Cable branch box adopts imported high grade rubber insulated tight insulation without naked live parts .Its switch is SF6 insulated load switch . SF6 cable branch box is designed for outdoor maintenance free operation, safe and reliable and its protection degree reaches IP933. The underground branch connector is antiflood .It is widely used in urban industrict,residential district .commercial center,mining area ,large scale enterprises such as steel, automobile, petroleum ,chemical industry ,cement ,and other occasions ,It is particularly suitable for urban power grid reconstruction project ,which can greatly save the investment of electrical equipment and cables, and improve the reliabililty of power supply . This equipment complies with the requirements of standard IEC62271-200,IEC62271-100 etc.

Send Inquiry

Description

SF6 gas insulated electrical control panelboard

Ambient condition:

1. Ambient temperature: -25°c~+40°c;

2. Altitude: ≤1000m;

3. Relative humidity: daily average ≤ 95%, monthly average ≤ 90%;

4. Occasions without flammable and explosive matter, without corrosive chemical and frequent severe vibration, without strong shake.

Main Advantages

Small size , compact structure,easy to install and operate;
Stainless steel or metal steel board ,which thickness≥2mm
Anti-corrosion & with special Spray-painting artworks;
Usage life more than 30 years ;
It can be used in some harsh environments like high or low temerature, some dust area;
Fully sealed structure, without insulation disrance;
High voltage electric parts with cable connector or use sillcon rubber for people safely ;
With zno arrester ;
Its cables can be splitted into be 7 branches to work together with SF6 loading switches to reach net power-supplying;
The cable connector can be used as switch ,it can be on or off with loading ,The max on-off voltage can reach 200Amp;
After fix the fault indicator ,user can test circuit fault very quickly;
Cheaper cost ,save cable ;
Cable connectors comply with IEE386 standard, all cables are suitable for cross linking polyethylene insulated cables.

Technical Parameter

No.	Item		Unit	Parameter
1	Rated voltage		KV	11 12	24	33	40.5
2	Rated current		A	630/1250
3	Rated frequency		Hz	50/60
4	1min Power frequency withstand voltage	Phase to phase, phase to earth	kV	42	55	80	95
		Fracture		46	65	95	110
5	Lightning impulse withstand voltage	Phase to phase, phase to earth	kV	75	125/150	170	95
		Fracture		85	150/160	185	215
6	Short time withstand current	Main circuit	kA	25/2s
		Earthing circuit
7	Rated withstand current (peak)		kA	63			50
8	Rated transferring current		A	1300-1700
9	Rated load circuitmarking current		A	630
10	Rated cable(line) charging breaking current		A	Oct-50
11	No load transformer breaking current		A	20
12	Cable charge breaking current in earthing fault		A	100			80
13	Rated short curcuitbreaking current (peak)		kA	20
14	Rated short circuit making current (peak)		kA	63			50
15	Protection level			IP3X
16	Load break switch life		times	5000
17	Earthing switch life		times	5000

SF6 GIS

sf6

XGN15-12 SF6

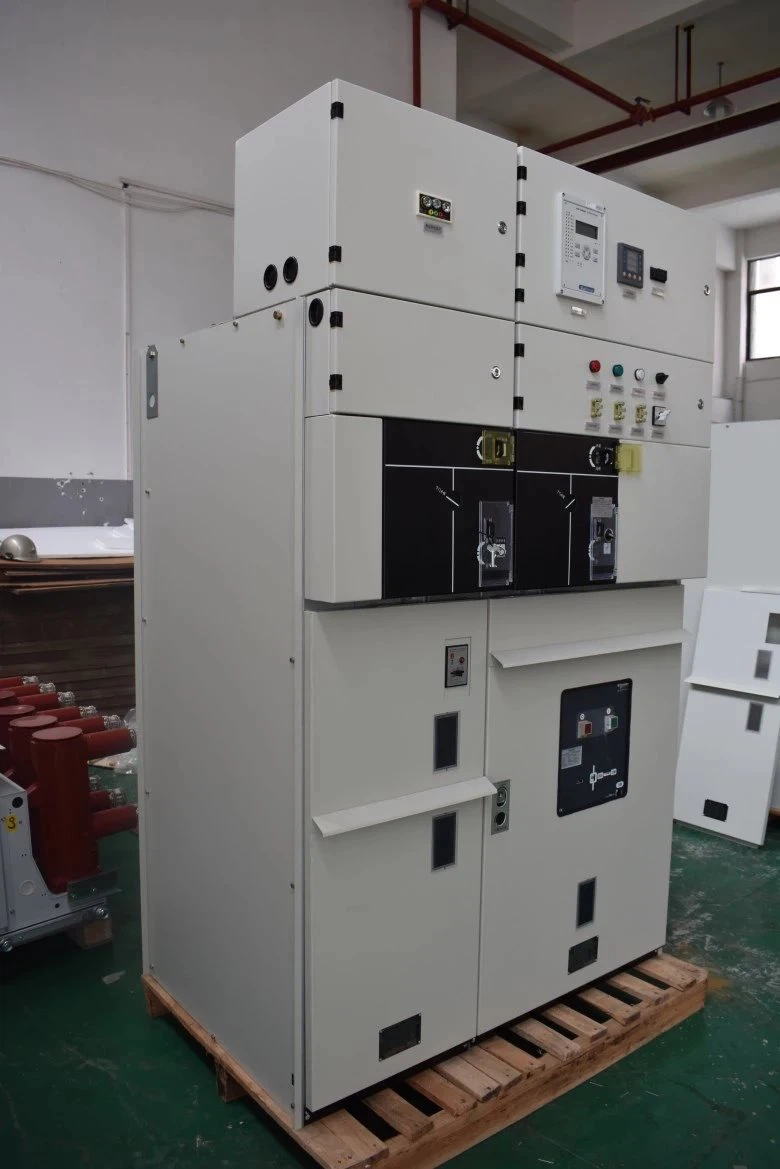

SF6 (2)

SF6 (3)

Air-insulated-switchgear

FACTORY WORKSHOP

production line1

workshop

CERTIFICATE

CQC

EXHIBITION

COMPANY OVERVIEW

FAQ

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
