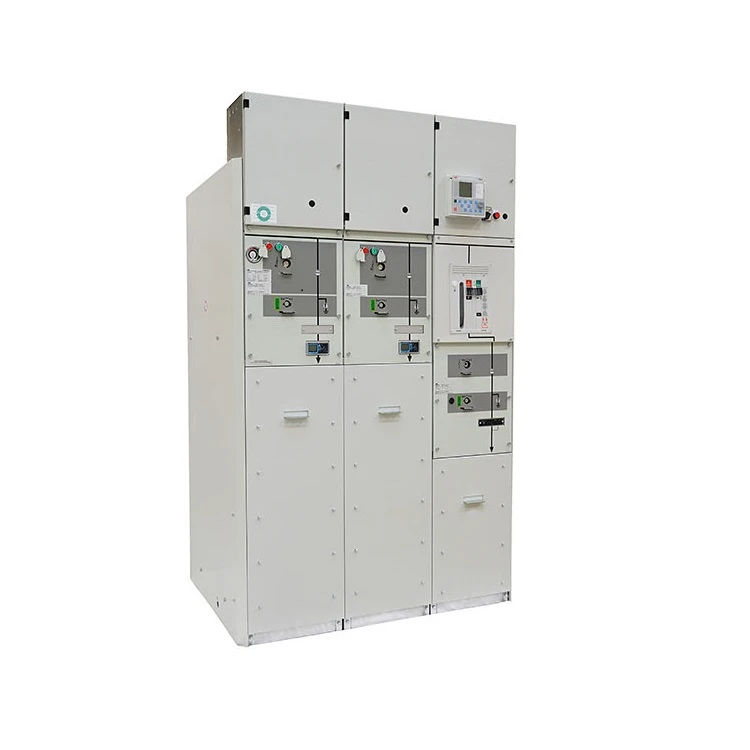

33kv GIS Switchgear

(1) The cabinet is of general-purpose type, and the frame is assembled by partially welded 8MF steel. The frame parts and specially equipped parts are provided by the designated factory to ensure the accuracy and quality of the cabinet.

(2) When designing the cabinet, the heat dissipation problem should be fully considered. Different numbers of heat dissipation slots are designed on the top and bottom of the cabinet to make the closed cabinet form natural ventilation from bottom to top, which can achieve the purpose of heat dissipation.

(3) The shape of the cabinet and the cutting size of each part are based on the requirements specified by the shape of the industrial product, and the golden ratio method is adopted to make the appearance of the cabinet novel and beautiful.

(4) The cabinet door is connected with the frame by the movable main shaft hinge, which is convenient for assembly and disassembly.

(5) The top cover of the cabinet can be disassembled as required, making the main busbar more convenient for on-site installation and adjustment. Lifting rings are installed on the four corners of the top cover of the cabinet for hoisting and loading.

(6) With locking function, automatic throwing function and checking status function.

(7) It can support multiple operation modes (optional);

(8) With communication function

(9) With intelligent monitoring function (optional);

Factory showing room

Certificates

Customers

The orderer should provide the following technical information:

a. Main wiring diagram plan, usage and single-line diagram, rated voltage, rated current, rated short-circuit breaking current, distribution room layout and switchgear layout, etc.

b. The control, measurement and protection function requirements of the switchgear; other blocking and automatic equipment requirements and schematic diagrams

C. The type, specification and quantity of the main electrical components installed in the switchgear.

d. Other special requirements.

Send your technical requirement or Single Line Diagram to my whatsapp, wechat or email, We could work together to win a project contract!
